Sunrider Schematic¶

Sunrider is the third iteration of UF’s solar car. The schematic can be found below. Sunrider Schematic

Basic Specifications¶

Battery¶

Nominal Voltage: 96V
Max Voltage: 109V
Rated Capacity: 5 kWh

Solar Array¶

RatedPower Output: —-

Motor¶

Model: —-
Rated Power Output: —-

Connector Pinout¶

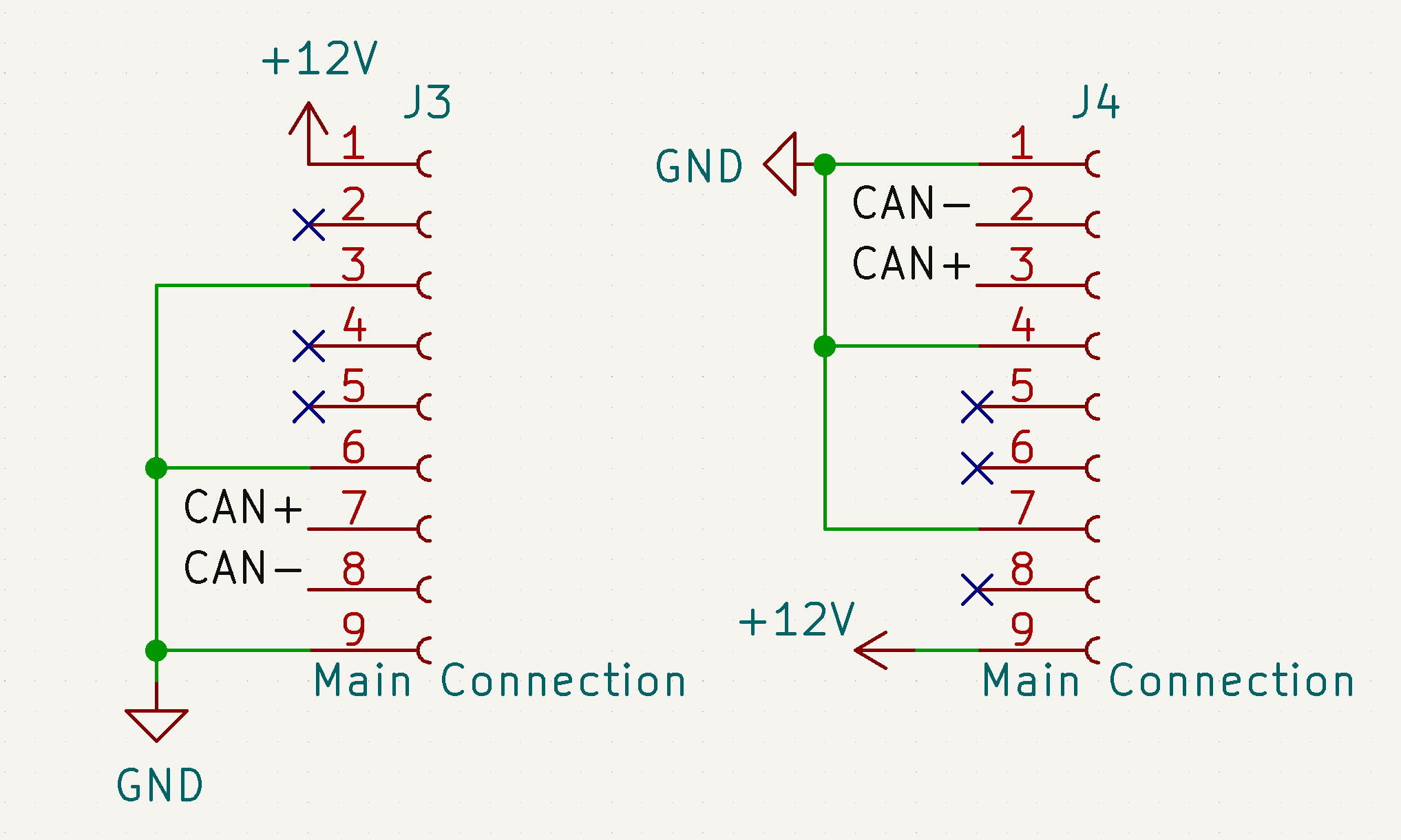

Sunrider uses 9-pin male and female connectors from Molex. These connectors are daisychained through all of the vehicle’s PCBs. These connectors will not be used in future vehicles. The pinout for these connectors is shown below. Pinout
